Thông tin

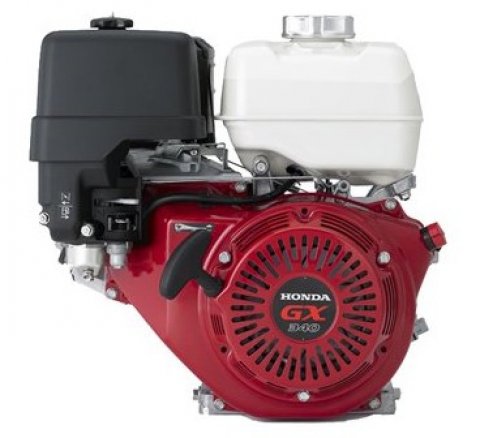

Động Cơ Xăng HONDA GX340
Bên trong động cơ 4 thì 1 xylanh nghiêng OHV
Nhãn hiệu: HONDA
Xuất xứ: Japan.
Model: GX340.
Công xuất: 10.7 Hp.
Vòng quay trục chính: 3600 vòng/phút.
Loại: 4 thì.
Dung tích Xy Lanh: 339cc.
Nhiên liệu: Xăng không chì.
Bảo hành: 3 năm.
Giá bán: Sản phẩm này không bán lẻ.
1)Honda OHV Commercial-grade engine
2)Horizontal shaft
3)Electronic ignition/Oil Alert
4)EPA/CARB compliant
The Next Generation of GX Engines
•More power.
•Quieter.
•Less fuel consumption.
•Less emissions.
•No modifications necessary for equipment currently set up for the previous GX series.
Applications: Cement mixers and trowels, Air compressors, Water pumps, Agricultural equipment, Blowers/vacs, Pressure washers, Generators, Go-Karts, Concrete saws, Chippers/shredders, Plus many other construction applications
|
Specifications |
|
|
Engine Type |
Air-cooled, 4-Stroke, OHV, single cylinder |
|
Bore x Stroke |
3.5" x 2.5" (88 x 64 mm) |
|
Displacement |
24 cu in (389 cm3) |
|
Compression Ratio |
8.2 : 1 |
|
Net power (kW/rpm)* |
10.7 hp (8.0 kW) |
|
Net Torque* |
19.5 lbs ft (26.4 Nm) |
|
PTO Shaft Rotation |
Counterclockwise (from PTO shaft side) |
|
Ignition System |
Digital CDI with variable ignition timing |
|
Starting System |
Recoil Starter |
|
Carburetor |
Butterfly |
|
Lubrication System |
Splash |
|
Governor System |
Centrifugal Mass Type |
|
Air Cleaner |
Dual Element |
|
Oil Capacity |
1.16 US qt (1.1 L) |
|
Fuel Tank Capacity |
6.4 US qt (6.1 L) |
|
Evaporative Emissions |
Low permeation hose and purge joint provided |
|
Exhaust Emissions |
Certified for use in all 50 states |
|
Dimensions (L x W x H) |
16.0" (407 mm) x 18.1" (459 mm) x 17.7" (449 mm) |
|
Dry Weight |
69 lbs (31.5 kg)
|
" >
Động Cơ Xăng HONDA GX340
Bên trong động cơ 4 thì 1 xylanh nghiêng OHV
Nhãn hiệu: HONDA
Xuất xứ: Japan.
Model: GX340.
Công xuất: 10.7 Hp.
Vòng quay trục chính: 3600 vòng/phút.
Loại: 4 thì.
Dung tích Xy Lanh: 339cc.
Nhiên liệu: Xăng không chì.
Bảo hành: 3 năm.
Giá bán: Sản phẩm này không bán lẻ.
1)Honda OHV Commercial-grade engine
2)Horizontal shaft
3)Electronic ignition/Oil Alert
4)EPA/CARB compliant
The Next Generation of GX Engines
•More power.
•Quieter.
•Less fuel consumption.
•Less emissions.
•No modifications necessary for equipment currently set up for the previous GX series.
Applications: Cement mixers and trowels, Air compressors, Water pumps, Agricultural equipment, Blowers/vacs, Pressure washers, Generators, Go-Karts, Concrete saws, Chippers/shredders, Plus many other construction applications
|
Specifications |
|
|
Engine Type |
Air-cooled, 4-Stroke, OHV, single cylinder |
|
Bore x Stroke |
3.5" x 2.5" (88 x 64 mm) |
|
Displacement |
24 cu in (389 cm3) |
|
Compression Ratio |
8.2 : 1 |
|
Net power (kW/rpm)* |
10.7 hp (8.0 kW) |
|
Net Torque* |
19.5 lbs ft (26.4 Nm) |
|
PTO Shaft Rotation |
Counterclockwise (from PTO shaft side) |
|
Ignition System |
Digital CDI with variable ignition timing |
|
Starting System |
Recoil Starter |
|
Carburetor |
Butterfly |
|
Lubrication System |
Splash |
|
Governor System |
Centrifugal Mass Type |
|
Air Cleaner |
Dual Element |
|
Oil Capacity |
1.16 US qt (1.1 L) |
|
Fuel Tank Capacity |
6.4 US qt (6.1 L) |
|
Evaporative Emissions |
Low permeation hose and purge joint provided |
|
Exhaust Emissions |
Certified for use in all 50 states |
|
Dimensions (L x W x H) |
16.0" (407 mm) x 18.1" (459 mm) x 17.7" (449 mm) |
|
Dry Weight |
69 lbs (31.5 kg)
|
